| Marka : | Fsp |
| Stok Kodu : | 001.POWER.FSP.VITA-850BD |
| Barkod : | 04711498480200 |
| DP : | R |

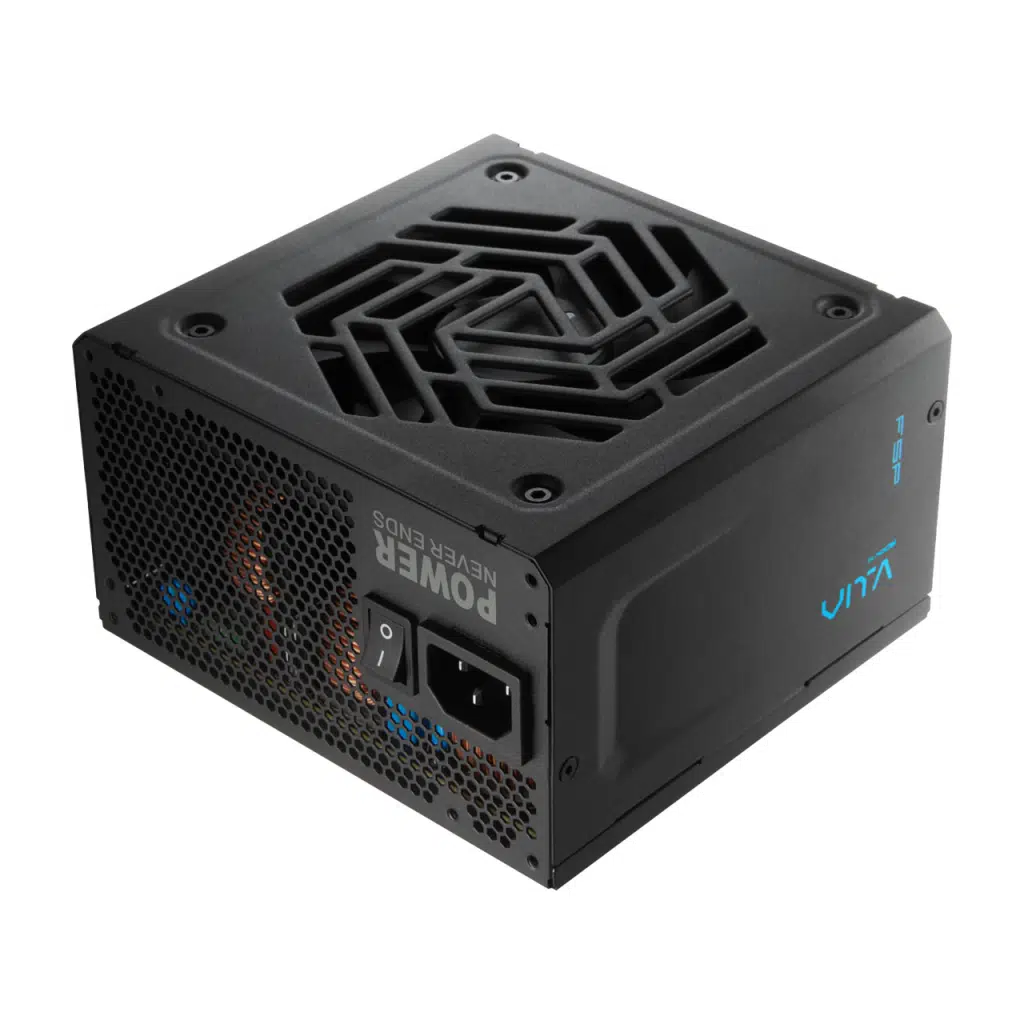

VITA BD series is compatible with the latest ATX 3.1 regulation to support up to 200% power excursion and with the new interface of PCIe 12V-2x6 connector to ensure peak performance with future hardware upgrades.
Increase the efficiency and stabilize the output voltage to ensure system stability.
Certified by world-class organizations 80 PLUS ® 230V EU Bronze certification for lower power loss, less heat, and quieter operation.
Modern CPUs and graphics cards can draw significant amounts of power, especially during peak loads., a single +12V rail PSU offers a good balance of simplicity, power delivery capability, and stability.
Featuring improved black, flat cables that are soft and easy to bend, users can manage them more easily, saving time and creating more space for optimal cooling performance in your PC build.
The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.
Built with optimized thermal solution and an advanced 120mm fan for cooler components and quieter operation.
Over Voltage Protection
Over Current Protection
Over Power Protection
Over Temperature Protection
Short Circuit Protection
Under Voltage Protection
Surge and Inrush Protection
No-load Operation
Our comprehensive circuit shields your valuable components from harm.
MB 24 PIN
CPU 8 PIN
/ CPU 4+4 PIN
PCIe 6+2 PIN
PCIe 12V-2x6
SATA
MOLEX / SATA
| AC Input | 200-240V~ 6A 50-60Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 20A | 20A | 70.83A | 0.3A | 2.5A |
| Max Combined Power | 100W | 850W | 3.6W | 12.5W | |
| Total Power | 850W | ||||
| Model | VITA-850BD |
|---|---|
| Rated Output Power | 850W |
| Form Factor | ATX12V V3.1 |
| 80 PLUS Certification | 230V EU Bronze |
| Input Voltage | 200-240V |
| Input Current | 6A |
| Input Frequency | 50-60Hz |
| PFC | Active ≧ 0.9 |
| Efficiency(at typical load) | ≥88% at typical load |
| Fan Type | Sleeve Bearing, 120mm |
| Dimensions(L x W x H) | 140×150×86 mm |
| Operation Temp. | 40°C |
| Protection | OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO |
| Warranty | 5 Years |
Ürünü değerlendirmek için hesabınıza giriş yapmalısınız. Giriş Yap
| Stok Kodu | 001.POWER.FSP.VITA-850BD |
|---|---|
| Barkod | 04711498480200 |
| EAN | 04711498480200 |
| Üretim Yeri | R |
| Kategoriler | Power Supply |
| Markalar | Fsp |
| Etiketler | FSP VITA 850BD, 850W, 80+ BRONZ, Aktif PFC, GAMING, ATX, Power Supply (PSU) |
| Kullanım Durumu | Yeni |
