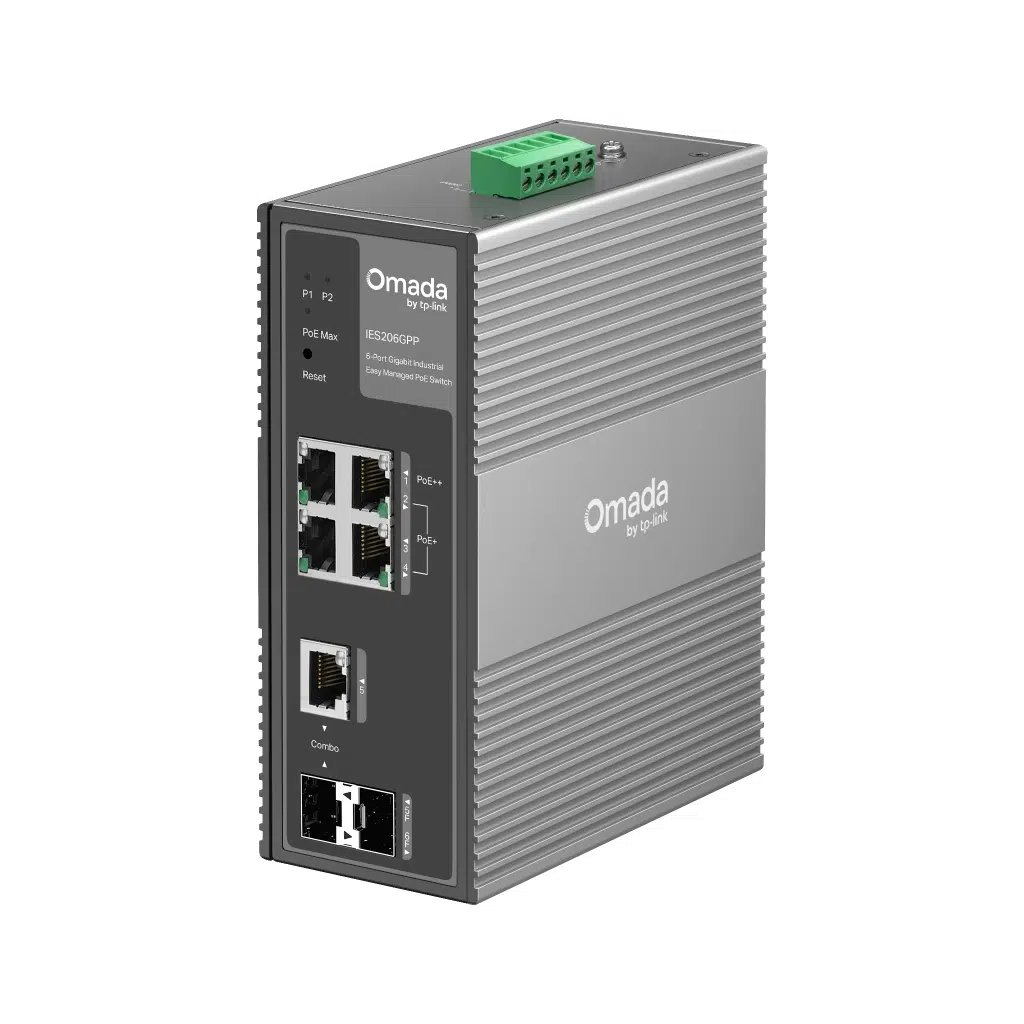

| Marka : | OMADA |
| Stok Kodu : | 005.HUB.TPP.IES206GPP |
| Barkod : | 01210002602051 |
| DP : | R |
| DONANIM ÖZELLİKLERİ | |
|---|---|
| Arabirim | • 1× 10/100/1000 Mbps PoE++ RJ45 Ports • 3× 10/100/1000 Mbps PoE+ RJ45 Ports • 1× Gigabit SFP/RJ45 Combo Slot • 1× Gigabit SFP Slot • Auto-Negotiation/Auto MDI/MDIX |
| Fan Sayısı | Fanless |
| Kurulum | • DIN-rail mounting • Wall mounting |
| Güç Kaynağı | 12-57V 1+1 Redundant DC Power Input |
| PoE Portları (RJ45) | • Standard: 802.3af/at/bt compliant • PoE++ Ports (802.3af/at/bt PoE): 1 Port, up to 60W per port • PoE+ Ports (802.3af/at PoE): 3 Ports, up to 30W per port • PoE Budget: - 60W (Input: 12V / 7.0A - 21V / 3.5A)) - 120W (Input: 21V / 6.5A - 57V / 2.3A) • Fast PoE • Perpetual PoE |
| Boyutlar ( W X D X H ) | 6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm) |
| Surge Protection | • ±6 kV in common mode for Ethernet ports • ±4 kV in common mode for DC power input ports |
| PERFORMANS | |
|---|---|
| Anahtarlama Kapasitesi | 12 Gbps |
| Paket Yönlendirme Hızı | 8.93 Mpps |
| MAC Adres Tablosu | 8K |
| Paket Buffer Belleği | 4 Mbit |
| Jumbo Frame | 15 KB |
| YAZILIM ÖZELLİKLERİ | |
|---|---|
| Quality of Service | • 802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rate Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control |
| L2 Özellikleri | • Link Aggregation - Static Link Aggregation - Up to 2 aggregation groups and up to 4 ports per group • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP • Spanning Tree - STP (802.1d) - RSTP (802.1w) |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| İletim Metodu | Store-And-Forward |
| YÖNETİM | |
|---|---|
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Digital Diagnostic Monitoring (DDM) • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
| DİĞERLERİ | |
|---|---|
| Sertifika | FCC, CE, RoHS |
| Paket İçeriği | • IES206GPP • DIN-Rail Mounting Bracket • Wall-Mounting Plates • Installation Guide |
| Ortam | • Operating Temperature: -40℃~75℃ (-40℉~167℉) • Storage Temperature: -40℃~85℃ (-40℉~185℉) • Operating Humidity: 5%~95% non-condensing • Storage Humidity: 5%~95% non-condensing |
Ürünü değerlendirmek için hesabınıza giriş yapmalısınız. Giriş Yap
| Stok Kodu | 005.HUB.TPP.IES206GPP |
|---|---|
| Barkod | 01210002602051 |
| EAN | 01210002602051 |
| Üretim Yeri | R |
| Kategoriler | Switch ve Hub Çeşitleri |
| Markalar | OMADA |
| Etiketler | |
| Kullanım Durumu | Yeni |
